HGTP10N40F1D Datasheet, Igbt, Intersil Corporation

✔ HGTP10N40F1D Features

10A, 400V and 500V
Latch Free Operation
Typical Fall Time < 1.4µs
High Input Impedance
Low Conduction Loss
Anti-Parallel Diode
tRR < 60ns Description The I

✔ HGTP10N40F1D Application

operating at frequencies where low conduction losses are essential, such as: AC and DC motor controls, power

PDF File Details

Intersil Corporation manufacturer logo

Part number:

HGTP10N40F1D

Manufacturer:

Intersil Corporation

File Size:

34.04kb

Download:

📄 Datasheet

Description:

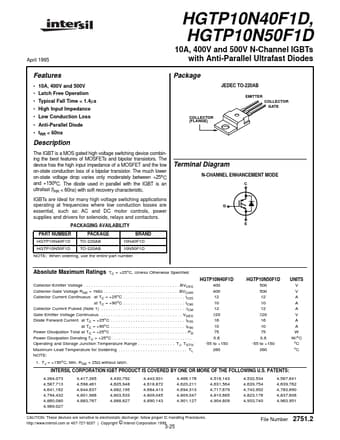

N-channel igbt. The IGBT is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. The device has

📥 Download PDF (34.04kb)
