HIP9020 - Programmable Quad Buffer with Pre and Post Scaler Dividers

Name: HIP9020
SKU: HIP9020-75778

Intersil Corporation

The HIP9020 by Intersil Corporation is a Programmable Quad Buffer with Pre and Post Scaler Dividers. Below is the official datasheet preview.

📥 Download Datasheet

HIP9020 Programmable Quad Buffer with Pre and Post Scaler Dividers by Intersil Corporation - Datasheet Preview — Official preview page of the **HIP9020** Programmable Quad Buffer with Pre and Post Scaler Dividers datasheet (Intersil Corporation).

Datasheet Details

Part number	HIP9020
Manufacturer	Intersil Corporation
File Size	23.28 KB
Description	Programmable Quad Buffer with Pre and Post Scaler Dividers
Datasheet	HIP9020_IntersilCorporation.pdf

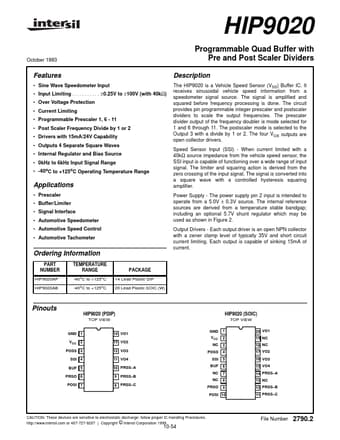

Additional preview pages of the HIP9020 datasheet.

HIP9020 Product details

Description

The HIP9020 is a Vehicle Speed Sensor (VSS) Buffer IC.

Features

Sine Wave Speedometer Input.
Input Limiting.
. ±0.25V to ±100V (with 40kΩ).
Over Voltage Protection.
Current Limiting.
Programmable Prescaler 1, 6 - 11.
Post Scaler Frequency Divide by 1 or 2.
Drivers with 15mA/24V Capability.
Outputs 4 Separate Square Waves.
Internal Regulator and Bias Source.
0kHz to 6kHz Input Signal Range.
-40oC to +125oC Operating Temperature Range Applicati.
