HIP9021

Portable Battery Drive/Torque Controller for N-Channel MOSFETs in Motor Control Systems

Intersil Corporation

HIP9021 Features

* MOSFET Driver and DC Motor Controller

* Torque Control and Overload Protection

* Battery Power Supply . . . . . . . . . . . . . . . . +5V to +15V

* BiMOS IC with Low Operating Current - Maximum Supply Current . . . . . . . . . . . . . . . . .1.5mA - Maximum Input Le

HIP9021 General Description

The HIP9021IB is a dedicated Power MOSFET driver which drives a DC motor. As a system, motor speed is controlled while controlling torque. The primary application is drive control for portable drills while providing overload protection. The main function of the HIP9021IB is to produce a pulse width .

HIP9021 Datasheet (59.28 KB)

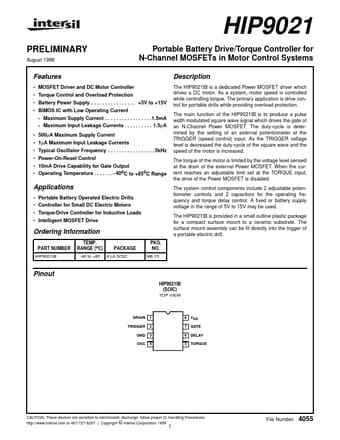

HIP9021 Datasheet Preview — Preview of HIP9021 PDF

Datasheet Details

Part number:

HIP9021

Manufacturer:

Intersil Corporation

File Size:

59.28 KB

Description:

Portable battery drive/torque controller for n-channel mosfets in motor control systems.
