HIP9011 - Engine Knock Signal Processor

Renesas

The HIP9011 by Renesas is a Engine Knock Signal Processor. Below is the official datasheet preview.

📥 Download Datasheet

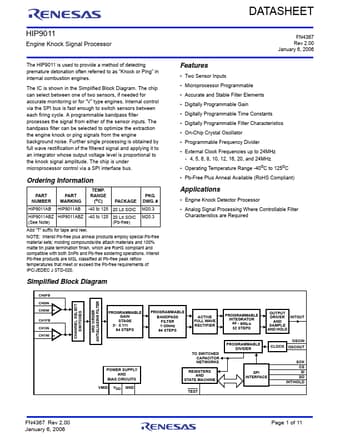

HIP9011 Engine Knock Signal Processor by Renesas - Datasheet Preview — Official preview page of the **HIP9011** Engine Knock Signal Processor datasheet (Renesas).

Datasheet Details

Part number	HIP9011
Manufacturer	Renesas
File Size	608.69 KB
Description	Engine Knock Signal Processor
Datasheet	HIP9011-Renesas.pdf
Additional preview pages of the HIP9011 datasheet.

HIP9011 Product details

Description

PIN NUMBER DESIGNATION DESCRIPTION 1 VDD Five volt power input.2 GND This pin is tied to ground.3 VMID This pin is connected to the internal mid-supply generator and is brought out for bypassing by a 0.022F capacitor.4 INTOUT Buffered output of the integrator.Output signal is held by an internal Sample and Hold circuit when INT/HOLD is low.5, 6 NC These pins are not internally connected.Do Not Use.7 INT/HOLD Selects whether the chip is in the Integrate Mode (Input Hig

Features

Two Sensor Inputs.
Microprocessor Programmable.
Accurate and Stable Filter Elements.
Digitally Programmable Gain.
Digitally Programmable Time Constants.
Digitally Programmable Filter Characteristics.
On-Chip Crystal Oscillator.
Programmable Frequency Divider.
External Clock Frequencies up to 24MHz - 4, 5, 6, 8, 10, 12, 16, 20, and 24MHz.
Operating Temperature Range -40oC to 125oC.
Pb-Free Plus Ann.
