HUF76137P3 N-Channel MOSFET

HUF76137P3, HUF76137S3S Data Sheet September 1999 File Number 4398.6 75A, 30V, 0.009 Ohm, N-Channel, Logic Level UltraFET Power MOSFETs These N-Channel power MOSFETs are manufactured using the innovative UltraFET™ process. This advanced process technology achieves the lowest possible on-resistance per silicon area, resulting in outstanding performance. This device is capable of withstanding high energy in the avalanche mode and the diode exhibits very low reverse recovery time and stored charge.

HUF76137P3 Features

* Logic Level Gate Drive

* 75A, 30V

* Ultra Low On-Resistance, rDS(ON) = 0.009Ω

* Temperature Compensating PSPICE™ Model

* Temperature Compensating SABER Model

* Thermal Impedance SPICE Model

* Thermal Impedance SABER Model

* Peak Curre

HUF76137P3_IntersilCorporation.pdf

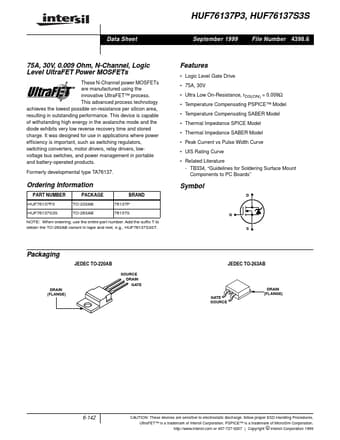

HUF76137P3 Datasheet Preview — Preview of HUF76137P3 PDF

Datasheet Details

Part number:

HUF76137P3

Manufacturer:

Intersil Corporation

File Size:

108.25 KB

Description:

N-channel mosfet.
