HUF76137S3S - N-Channel MOSFET

Intersil Corporation

📥 Download Datasheet

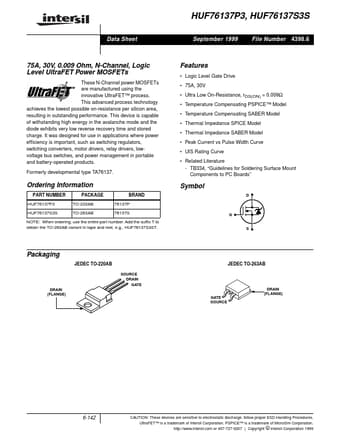

HUF76137S3S Datasheet Preview — Preview of HUF76137S3S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HUF76137S3S
Manufacturer: Intersil Corporation
File Size: 108.25 KB
Datasheet: HUF76137S3S_IntersilCorporation.pdf
Description: N-Channel MOSFET

HUF76137S3S Product details

Features

Logic Level Gate Drive.
75A, 30V.
Ultra Low On-Resistance, rDS(ON) = 0.009Ω.
Temperature Compensating PSPICE™ Model.
Temperature Compensating SABER Model.
Thermal Impedance SPICE Model.
Thermal Impedance SABER Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER HUF76137P3 H.
