KHB9D5N20F1 - (KHB9D5N20F1/F2/P1) N CHANNEL MOS FIELD EFFECT TRANSISTOR

KEC

The KHB9D5N20F1 by KEC is a (KHB9D5N20F1/F2/P1) N CHANNEL MOS FIELD EFFECT TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

KHB9D5N20F1 (KHB9D5N20F1/F2/P1) N CHANNEL MOS FIELD EFFECT TRANSISTOR by KEC - Datasheet Preview — Official preview page of the **KHB9D5N20F1** (KHB9D5N20F1/F2/P1) N CHANNEL MOS FIELD EFFECT TRANSISTOR datasheet (KEC).

Datasheet Details

Part number	KHB9D5N20F1
Manufacturer	KEC
File Size	526.19 KB
Description	(KHB9D5N20F1/F2/P1) N CHANNEL MOS FIELD EFFECT TRANSISTOR
Datasheet	KHB9D5N20F1_KEC.pdf
Additional preview pages of the KHB9D5N20F1 datasheet.

KHB9D5N20F1 Product details

Description

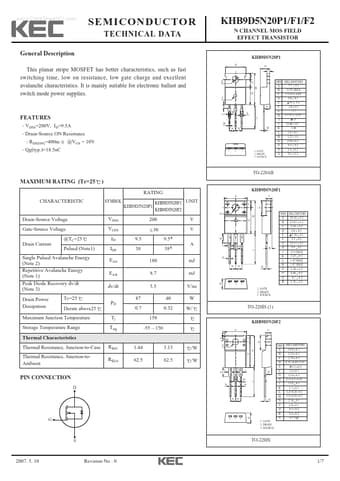

A KHB9D5N20P1 O C F E G B Q I K M L J D N N H P DIM MILLIMETERS _ 0.2 9.9 + A B C D E F G H I J K L M N O 1 2 3 This planar stripe MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characteristics.It is mainly suitable for electronic ballast and switch mode power supplies.

Features

VDSS=200V, ID=9.5A Drain-Source ON Resistance : RDS(ON)=400m Qg(typ. )=18.5nC @VGS = 10V 15.95 MAX 1.3+0.1/-0.05 _ 0.1 0.8 + _ 0.2 3.6 + _ 0.1 2.8 + 3.7 0.5+0.1/-0.05 1.5 _ 0.3 13.08 + 1.46 _ 0.1 1.4 + _ 0.1 1.27 + _ 0.2 2.54 + _ 4.5 + 0.2 _ 0.2 2.4 + _ 0.2 9.2 + 1. GATE 2. DRAIN 3. SOURCE P Q TO-220AB.
