K4N25G Datasheet - KODENSHI KOREA CORP

K4N25G Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)

Photocoupler K4N25G K4N25H These Photocouplers cosist of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN Phototransistor in a 6-pin package. 7.62 6 5 4 0.25 6.4 DIMENSION (Unit : mm) 0.51Min. 3.8 TTL Compatible Output Collector-Emitter Voltage : Min.50V Current Transfer Ratio : Typ.100% (at IF=5mA, VCE=5V) Electrical Isolation Voltage : AC5000Vrms UL Recognized File No. E107486 K4N25G - No Base Connection, K.

K4N25G Features

* 0.25 1 2 3 0 -15 8.9 0.25 Orientation Mark 0.25 K4N25G PIN NO. AND INIERNAL CONNECION DIAGRAM 4 5 6 1 2.7Min. 0.5 2.54 0.25 1.2 2 5 3 4 APPLICATIONS

* Interface between two circuits of different potential

* Vending Machine, Copiers

* Measuring Instrument

K4N25G Datasheet (187.37 KB)

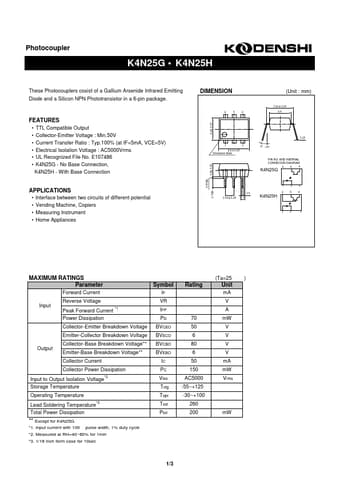

Preview of K4N25G PDF
K4N25G Datasheet Preview Page 2 K4N25G Datasheet Preview Page 3

Datasheet Details

Part number:

K4N25G

Manufacturer:

KODENSHI KOREA CORP

File Size:

187.37 KB

Description:

Photocoupler(these photocouplers cosist of a gallium arsenide infrared emitting).
