K4N26 Datasheet - KODENSHI KOREA CORP

K4N26, Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Photocoupler K4N26 These Photocouplers consist of a Gallium Arsenide Infrared Emitting DIMENSION Diode and a Silicon NPN Phototransistor in a 6-pin p.

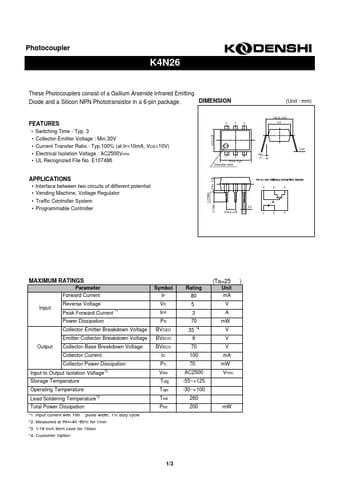

datasheet Preview Page 1 from Datasheet4u.com

K4N26_KodenshiCorp.pdf

K4N26 Datasheet Preview — Preview of K4N26 PDF

Datasheet Details

Part number:

K4N26

Manufacturer:

KODENSHI KOREA CORP

File Size:

699.09 KB

Description:

Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Features

* Switching Time - Typ. 3
* Á
* Collector-Emitter Voltage : Min.30V
* Current Transfer Ratio : Typ.100% (at IF=10mA, VCE=10V)
* Electrical Isolation Voltage : AC2500Vrms
* UL Recognized File No. E107486 0.25 6 5 4 6.4 6.4 0.25 1 8.9 Orientation Mark 2

Applications

* 0.51Min.
* Interface between two circuits of different potential
* Vending Machine, Voltage Regulator
* Traffic Controller System
* Programmable Controller 3.8 0.25 6 5 4 2.7Min. 0.5 2.54 0.25 1.2 1 2 3 MAXIMUM RATINGS Parameter Forward Current Input Rever
