3DG1815M SILICON NPN TRANSISTOR

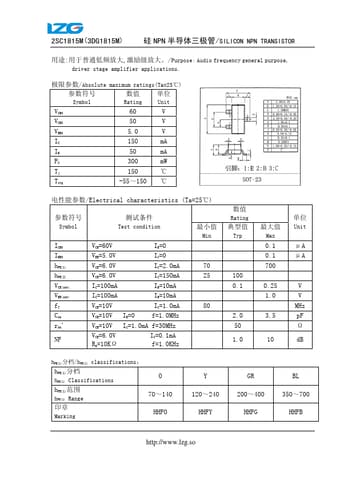

2SC1815M(3DG1815M) NPN /SILICON NPN TRANSISTOR :,。/Purpose: Audio frequency general purpose, driver stage amplifier applications. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 60 V VCEO 50 V VEBO 5.0 V IC 150 mA IB 50 mA PC 300 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics (Ta=25℃) Symbol Test condition ICBO IEBO hFE(1) hFE(2) VCE(sat) VBE(sat) fT Cob rbb’ NF VCB=60V IE=0 VEB=5.0V IC=0 VCE=6.0V IC=2.0mA VCE=6.0V IC=150mA IC=100mA IB=10mA .

3DG1815M Datasheet (286.34 KB)

Preview of 3DG1815M PDF
3DG1815M Datasheet Preview Page 2

Datasheet Details

Part number:

3DG1815M

Manufacturer:

LZG

File Size:

286.34 KB

Description:

Silicon npn transistor.
