ME2345A-G, ME2345A - P-Channel 30V (D-S) MOSFET

ME2345A-G Description

P-Channel 30V (D-S) MOSFET ME2345A/ME2345A-G GENERAL .
The ME2345A is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

ME2345A-G Features

* RDS(ON) ≦68mΩ@VGS=-10V
* RDS(ON) ≦80mΩ@VGS=-4.5V
* RDS(ON) ≦100mΩ@VGS=-2.5V
* Super high density cell design for extremely low RDS(ON)

ME2345A-G Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch
* DSC e Ordering Information: ME2345A (Pb-free) ME2345A-G (Green product-Halogen free) Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-Sourc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ME2345A-G, ME2345A. Please refer to the document for exact specifications by model.

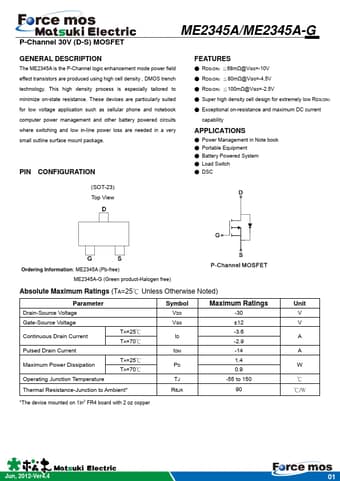

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME2345A-G, ME2345A
Manufacturer
Matsuki
File Size
781.39 KB
Datasheet
ME2345A-Matsuki.pdf
Description
P-Channel 30V (D-S) MOSFET
Note
This datasheet PDF includes multiple part numbers: ME2345A-G, ME2345A.
Please refer to the document for exact specifications by model.
