ME2345A

P-Channel 30V (D-S) MOSFET

ME2345A Features

* RDS(ON) ≦68mΩ@VGS=-10V

* RDS(ON) ≦80mΩ@VGS=-4.5V

* RDS(ON) ≦100mΩ@VGS=-2.5V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability APPLICATIONS

* Power Management in Note book

* Portable Equipment

* B

ME2345A General Description

The ME2345A is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such a.

ME2345A Datasheet (781.39 KB)

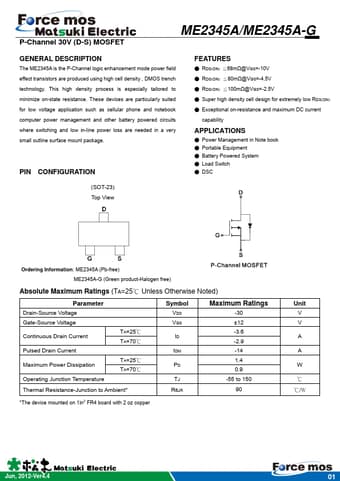

Preview of ME2345A PDF

Datasheet Details

Part number:

ME2345A

Manufacturer:

Matsuki

File Size:

781.39 KB

Description:

P-channel 30v (d-s) mosfet.
