ME2345-G, ME2345, P-Channel Enhancement Mode Mosfet

P-Channel Enhancement Mode Mosfet GENERAL .
The ME2345 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

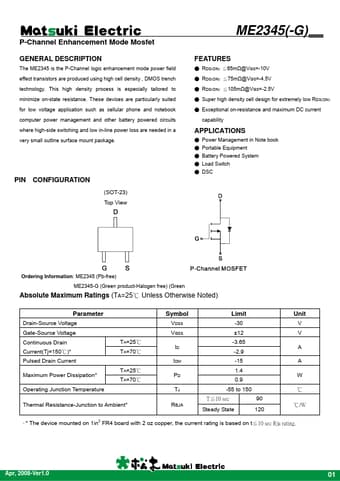

datasheet Preview Page 1 from Datasheet4u.com

ME2345-Matsuki.pdf

ME2345-G Datasheet Preview — This datasheet PDF includes multiple part numbers: ME2345-G, ME2345. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ME2345-G, ME2345

Manufacturer:

Matsuki

File Size:

0.99 MB

Description:

P-Channel Enhancement Mode Mosfet

Note:

This datasheet PDF includes multiple part numbers: ME2345-G, ME2345.
Please refer to the document for exact specifications by model.

Features

* RDS(ON) ≦65mΩ@VGS=-10V
* RDS(ON) ≦75mΩ@VGS=-4.5V
* RDS(ON) ≦105mΩ@VGS=-2.5V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch
* DSC e Ordering Information: ME2345 (Pb-free) ME2345-G (Green product-Halogen free) (Green Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-S
