ME2345 - P-Channel Enhancement Mode Mosfet

ME2345 Description

P-Channel Enhancement Mode Mosfet GENERAL .
The ME2345 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

ME2345 Features

* RDS(ON) ≦65mΩ@VGS=-10V
* RDS(ON) ≦75mΩ@VGS=-4.5V
* RDS(ON) ≦105mΩ@VGS=-2.5V
* Super high density cell design for extremely low RDS(ON)

ME2345 Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch
* DSC e Ordering Information: ME2345 (Pb-free) ME2345-G (Green product-Halogen free) (Green Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-S

📥 Download Datasheet

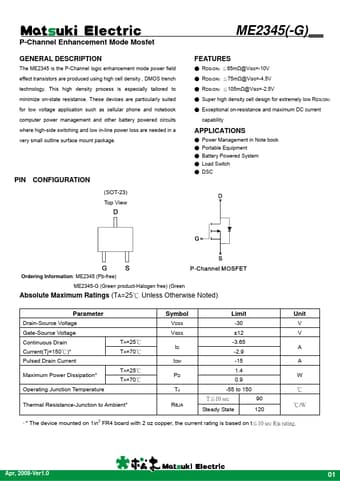

Preview of ME2345 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME2345
Manufacturer
Matsuki
File Size
0.99 MB
Datasheet
ME2345-Matsuki.pdf
Description
P-Channel Enhancement Mode Mosfet
