ME2345AS P-Channel 30V (D-S) MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

P-Channel 30-V (D-S) MOSFET ME2345AS/ME2345AS-G GENERAL .
The ME2345AS is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

📥 Download Datasheet

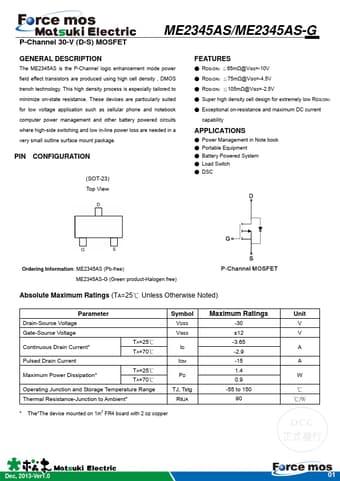

Preview of ME2345AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ME2345AS
Manufacturer
Matsuki
File Size
1.02 MB
Datasheet
ME2345AS-Matsuki.pdf
Description
P-Channel 30V (D-S) MOSFET

Features

* RDS(ON) ≦65mΩ@VGS=-10V
* RDS(ON) ≦75mΩ@VGS=-4.5V
* RDS(ON) ≦105mΩ@VGS=-2.5V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* Load Switch
* DSC Ordering Information: ME2345AS (Pb-fre
