ME8117 Datasheet - Matsuki

P-Channel MOSFET

ME8117 Features

* RDS(ON)≦5.2mΩ@VGS=-10V

* RDS(ON)≦9.5mΩ@VGS=-4V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability APPLICATIONS

* Power Management in Note book

* Portable Equipment

* Battery Powered System

* DC/DC

ME8117 General Description

The ME8117 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as .

ME8117 Datasheet (1.03 MB)

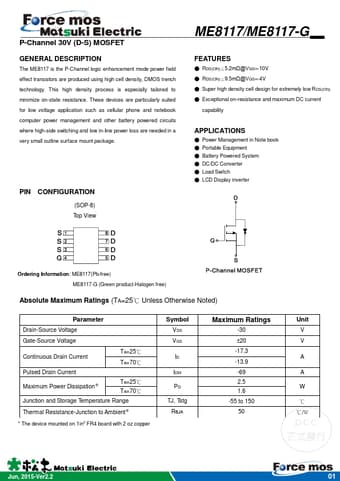

Preview of ME8117 PDF

Datasheet Details

Part number:

ME8117

Manufacturer:

Matsuki

File Size:

1.03 MB

Description:

P-channel mosfet.
