ME8117-G, ME8117 Datasheet - Matsuki

ME8117-G, ME8117, P-Channel MOSFET

P-Channel 30V (D-S) MOSFET GENERAL .
The ME8117 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

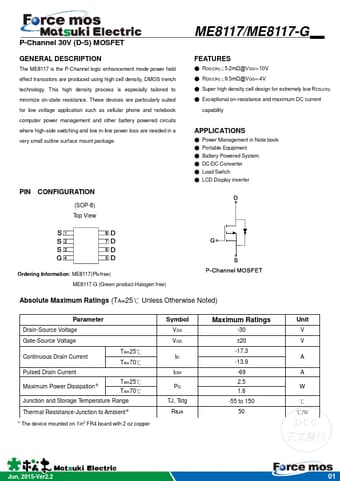

datasheet Preview Page 1 from Datasheet4u.com

ME8117-Matsuki.pdf

ME8117-G Datasheet Preview — This datasheet PDF includes multiple part numbers: ME8117-G, ME8117. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ME8117-G, ME8117

Manufacturer:

Matsuki

File Size:

1.03 MB

Description:

P-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: ME8117-G, ME8117.
Please refer to the document for exact specifications by model.

Features

* RDS(ON)≦5.2mΩ@VGS=-10V
* RDS(ON)≦9.5mΩ@VGS=-4V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* DC/DC Converter
* Load Switch
* LCD Display inverter The Ordering Information: ME8117(Pb-free) ME811
