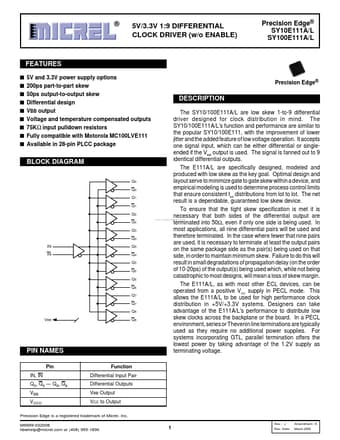

SY100E111A Datasheet, Driver, Micrel Semiconductor

SY100E111A Features

• Driver s s s s s s s s s 5V and 3.3V power supply options 200ps part-to-part skew 50ps output-to-output skew Differential design VBB output Voltage and temperature compensated outputs 75KΩ inp

PDF File Details

Part number:

SY100E111A

Manufacturer:

Micrel Semiconductor

File Size:

102.04kb

Download:

📄 Datasheet

Description:

1:9 differential clock driver. The SY10/100E111A/L are low skew 1-to-9 differential driver designed for clock distribution in mind. The SY10/100E111A/L's function a

SY100E111A Application

• Applications all nine differential pairs will be used and therefore terminated. In the case where fewer that nine pairs are used, it is necessary t
