SY100EPT28L 3V LVTTL-TO-DIFFERENTIAL LVPECL AND DIFFERENTIAL LVPECL-TO-LVTTL TRANSLATOR

SY100EPT28L Description

Micrel, Inc.3V LVTTL-TO-DIFFERENTIAL LVPECL AND DIFFERENTIAL LVPECL-TO-LVTTL TRANSLATOR ECL Pro™ SY10EPT28L ECL Pro™ SY100EPT28L SY10EPT28L SY100E.
The SY10/100EPT28L is a differential LVPECL-toLVTTL translator and a LVTTL-to-differential LVPECL translator in a single package.

SY100EPT28L Features

* 3.3V ±10% power supply
* Guaranteed AC parameters over temperature: fMAX > 275MHz (LVTTL)
* < 2ns LVPECL-to-LVTTL propagation delay
* < 600ps LVTTL-to-LVPECL propagation delay
* Internal 75kΩ input pull-down resistors
* Industrial temperature range:
* 40°C to +85°C

SY100EPT28L Applications

* which are sending and receiving signals across a backplane. The 100k series includes temperature compensation. Thus, logic levels are constant over temperature. Data sheets and support documentation can be found on Micrel’s web site at www. micrel. com. www. DataSheet4U. com PIN NAMES Pin D_LVTTL Q_LV

📥 Download Datasheet

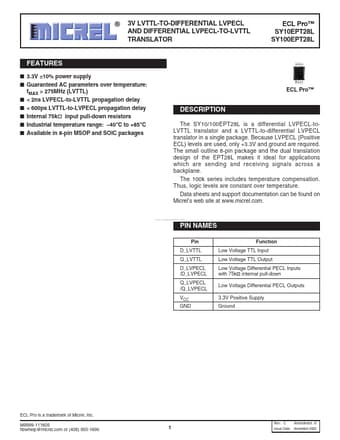

Preview of SY100EPT28L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY100EPT28L
Manufacturer
Micrel Semiconductor
File Size
141.30 KB
Datasheet
SY100EPT28L_MicrelSemiconductor.pdf
Description
3V LVTTL-TO-DIFFERENTIAL LVPECL AND DIFFERENTIAL LVPECL-TO-LVTTL TRANSLATOR
