QM10HA-HB MEDIUM POWER SWITCHING USE INSULATED TYPE

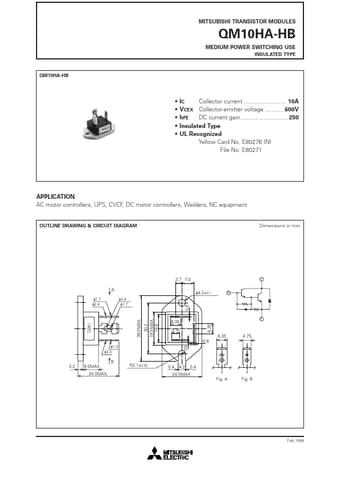

MITSUBISHI TRANSISTOR MODULES QM10HA-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM10HA-HB IC Collector current 10A VCEX Collector-emitter voltage 600V hFE DC current gain 250 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, Welders, NC equipment OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 3.7 7.0 A φ1.7 φ2.4 φ2.4 φ1.7 C φ4.2±0.1 B 0.8 .

QM10HA-HB Datasheet (68.14 KB)

QM10HA-HB Datasheet Preview — Preview of QM10HA-HB PDF

Datasheet Details

Part number:

QM10HA-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

68.14 KB

Description:

Medium power switching use insulated type.
