QM10HB-2H DRIVE USE FOR HIGH POWER TRANSISTOR INSULATED TYPE

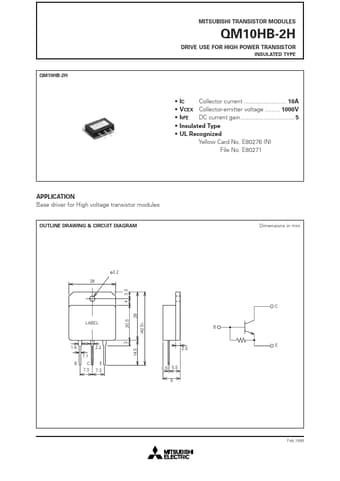

MITSUBISHI TRANSISTOR MODULES QM10HB-2H DRIVE USE FOR HIGH POWER TRANSISTOR INSULATED TYPE QM10HB-2H IC Collector current 10A VCEX Collector-emitter voltage 1000V hFE DC current gain 5 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Base driver for High voltage transistor modules OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm φ3.2 28 3.5 4 C 20.5 28 (42.5) LABEL B 3 1.1 B C 7.3 E 7.3 14.5 1.

QM10HB-2H Datasheet (52.76 KB)

QM10HB-2H Datasheet Preview — Preview of QM10HB-2H PDF

Datasheet Details

Part number:

QM10HB-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

52.76 KB

Description:

Drive use for high power transistor insulated type.
