MRF1090MB, MRF1090MA MICROWAVE POWER TRANSISTORS

MRF1090MB Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1090MA/D www.DataSheet4U.com The RF Line Microwave Pulse Power Transistors Designe.

MRF1090MB Applications

* in short pulse TACAN, IFF, and DME transmitters.
* Guaranteed Performance @ 1090 MHz, 50 Vdc Output Power = 90 Watts Peak Minimum Gain = 8.4 dB
* 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR
* Industry Standard Package
* Nitride Passivated

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRF1090MB, MRF1090MA. Please refer to the document for exact specifications by model.

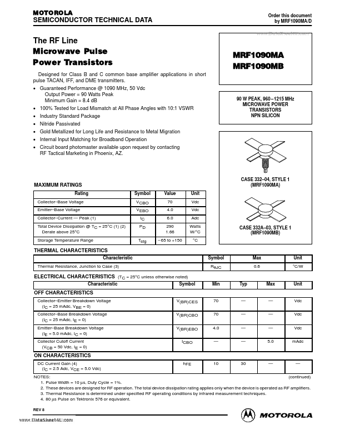

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF1090MB, MRF1090MA
Manufacturer
Motorola
File Size
106.21 KB
Datasheet
MRF1090MA_Motorola.pdf
Description
MICROWAVE POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: MRF1090MB, MRF1090MA.
Please refer to the document for exact specifications by model.
