2SD1692 - NPN Transistor

2SD1692 Description

DATA SHEET SILICON POWER TRANSISTOR 2SD1692 NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION) .

2SD1692 Features

* High DC current gain due to Darlington connection
* Large current capacity and low VCE(sat)
* Large power dissipation TO-126 type power transistor
* Complementary transistor: 2SB1149 ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Symbol Collector to base voltage

📥 Download Datasheet

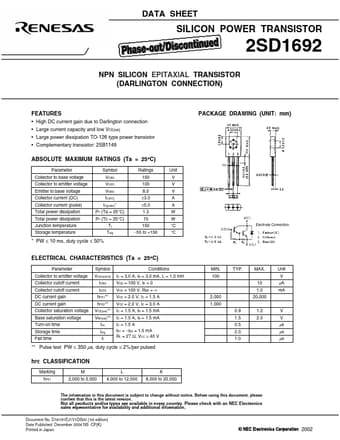

Preview of 2SD1692 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1692
Manufacturer
NEC
File Size
158.53 KB
Datasheet
2SD1692_NEC.pdf
Description
NPN Transistor
