3SK255 Datasheet - NEC

3SK255, RF AMPLIFIER FOR UHF TUNER N-CHANNEL Si DUAL GATE MOS FIELD-EFFECT TRANSISTOR 4 PINS SUPER MINI MOLD

DATA SHEET MOS FIELD EFFECT TRANSISTOR 3SK255 RF AMPLIFIER FOR UHF TUNER N-CHANNEL Si DUAL GATE MOS FIELD-EFFECT TRANSISTOR 4 PINS SUPER MINI MOLD .

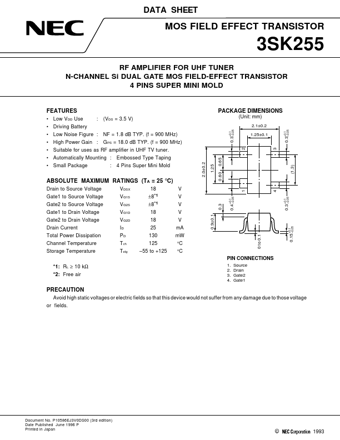

datasheet Preview Page 1 from Datasheet4u.com

3SK255_NEC.pdf

3SK255 Datasheet Preview — Preview of 3SK255 PDF

Datasheet Details

Part number:

3SK255

Manufacturer:

NEC

File Size:

54.90 KB

Description:

RF AMPLIFIER FOR UHF TUNER N-CHANNEL Si DUAL GATE MOS FIELD-EFFECT TRANSISTOR 4 PINS SUPER MINI MOLD

Features

* Low VDD Use
* Driving Battery
* Low Noise Figure :
* High Power Gain : NF = 1.8 dB TYP. (f = 900 MHz) GPS = 18.0 dB TYP. (f = 900 MHz) Embossed Type Taping 1.25 PACKAGE DIMENSIONS : (VDS = 3.5 V) 0.3 +0.1
* 0.05 (Unit: mm) 2.1±0.2 1.25±0.1 2 3 0.3 +0.1

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
