3SK257 Datasheet - Toshiba Semiconductor

3SK257 Silicon N Channel Dual Gate MOS Type FET

TOSHIBA Field Effect Transistor Silicon N Channel Dual Gate MOS Type 3SK257 3SK257 TV Tuner, VHF RF Amplifier Applications FM Tuner Applications TV Tuner, UHF RF Amplifier Applications Superior cross modulation performance. Low noise figure: NF = 2.0dB (typ.) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Drain-source voltage VDS 13.5 V Gate 1-source voltage VG1S ±8 V Gate 2-source voltage VG2S ±8 V Drain current ID 30 mA Drain power d.

3SK257_ToshibaSemiconductor.pdf

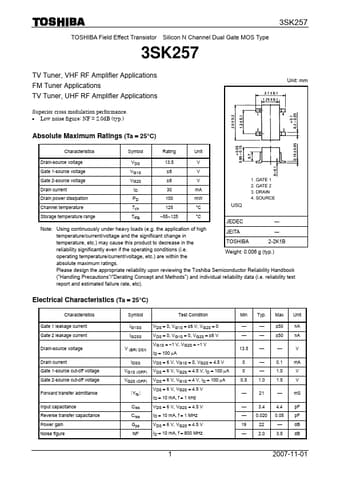

3SK257 Datasheet Preview — Preview of 3SK257 PDF

Datasheet Details

Part number:

3SK257

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

294.03 KB

Description:

Silicon n channel dual gate mos type fet.
