3SK258 Datasheet - Toshiba Semiconductor

3SK258 Silicon N Channel Dual Gate MOS Type FET

3SK258 TOSHIBA Field Effect Transistor Silicon N Channel Dual Gate MOS Type 3SK258 TV Tuner, VHF RF Amplifier Applications FM Tuner Applications Unit: mm Superior cross modulation performance. Low reverse transfer capacitance: Crss = 0.015 pF (typ.) Low noise figure: NF = 1.1dB (typ.) Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Gate 1-source voltage Gate 2-source voltage Drain current Drain power dissipation Channel temperature Storage temperature rang.

3SK258_ToshibaSemiconductor.pdf

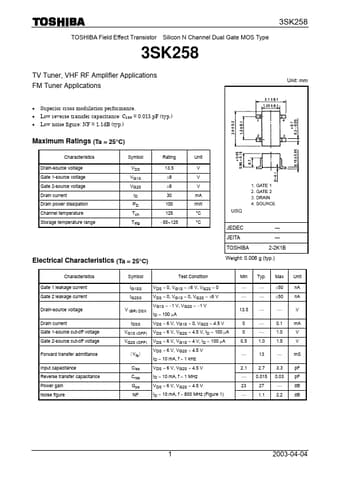

3SK258 Datasheet Preview — Preview of 3SK258 PDF

Datasheet Details

Part number:

3SK258

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

176.98 KB

Description:

Silicon n channel dual gate mos type fet.
