NX3L2G384

Dual low-ohmic single-pole single-throw analog switch

NX3L2G384 Features

* I Wide supply voltage range from 1.4 V to 3.6 V I Very low ON resistance (peak): N 1.6 Ω (typical) at VCC = 1.4 V N 1.0 Ω (typical) at VCC = 1.65 V N 0.55 Ω (typical) at VCC = 2.3 V N 0.50 Ω (typical) at VCC = 2.7 V I High noise immunity I ESD protection: N HBM JESD22-A114E Class 3A exceeds 7500 V N

NX3L2G384 General Description

The NX3L2G384 provides two low-ohmic single pole single throw analog switch functions. Each switch has two input/output terminals (nY and nZ) and an active LOW enable input (nE). When pin nE is HIGH, the analog switch is turned off. Schmitt-trigger action at the enable input (nE) makes the circuit t.

NX3L2G384 Datasheet (173.45 KB)

Preview of NX3L2G384 PDF

Datasheet Details

Part number:

NX3L2G384

Manufacturer:

NXP ↗ Semiconductors

File Size:

173.45 KB

Description:

Dual low-ohmic single-pole single-throw analog switch.
NX3L2G384 Dual low-ohmic single-pole single-throw analog switch Rev. 01

* 18 September 2008 www.datasheet4u.com Product data sheet 1. Genera.

📁 Related Datasheet

NX3L2G66 - Dual low-ohmic single-pole single-throw analog switch (NXP)
NX3L2G66 Dual low-ohmic single-pole single-throw analog switch Rev. 8 — 7 February 2013 Product data sheet 1. General description The NX3L2G66 is .

NX3L2267 - Low-ohmic dual single-pole double-throw analog switch (NXP)
NX3L2267 Low-ohmic dual single-pole double-throw analog switch Rev. 5 — 18 June 2012 Product data sheet 1. General description The NX3L2267 is a d.

NX3L2267S - Low-ohmic dual single-pole double-throw analog switch (NXP)
NX3L2267S Low-ohmic dual single-pole double-throw analog switch Rev. 2 — 8 November 2011 Product data sheet 1. General description The NX3L2267S i.

NX3L2467 - Double-pole Double-throw Analog Switch (NXP)
NX3L2467 Dual low-ohmic double-pole double-throw analog switch Rev. 5.1 — 18 May 2021 Product data sheet 1 General description The NX3L2467 is a d.

NX3L2T384 - Dual low-ohmic single-pole single-throw analog switch (NXP)
NX3L2T384 Dual low-ohmic single-pole single-throw analog switch Rev. 5 — 8 February 2013 Product data sheet 1. General description The NX3L2T384 i.

NX3L2T66 - Dual low-ohmic single-pole single-throw analog switch (NXP Semiconductors)
NX3L2T66 Dual low-ohmic single-pole single-throw analog switch Rev. 7.1 — 12 August 2020 Product data sheet 1 General description NX3L2T66 is a du.

NX3L1G3157 - Low-ohmic single-pole double-throw analog switch (NXP Semiconductors)
NX3L1G3157 Low-ohmic single-pole double-throw analog switch Rev. 10 — 7 August 2012 Product data sheet 1. General description The NX3L1G3157 is a .

NX3L1G3157-Q100 - Low-ohmic single-pole double-throw analog switch (NXP)
NX3L1G3157-Q100 Low-ohmic single-pole double-throw analog switch Rev. 1 — 23 May 2013 Product data sheet 1. General description The NX3L1G3157-Q10.

TAGS

NX3L2G384 Dual low-ohmic single-pole single-throw analog switch NXP Semiconductors

Image Gallery

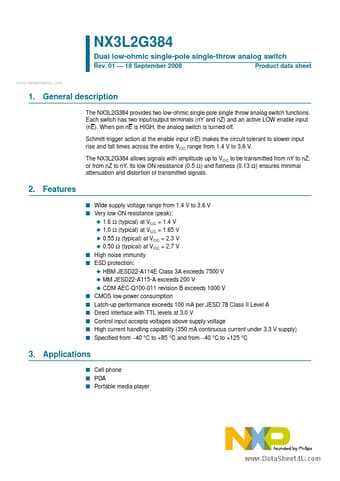

NX3L2G384 Datasheet Preview Page 2 NX3L2G384 Datasheet Preview Page 3
