NX3L1G3157-Q100 Low-ohmic single-pole double-throw analog switch

The NX3L1G3157-Q100 is a low-ohmic single-pole double-throw analog switch suitable for use as an analog or digital 2:1 multiplexer/demultiplexer. It has a digital select input (S), two independent inputs/outputs (Y0 and Y1) and a common input/output (Z). Schmitt trigger action at the digital input m.

NX3L1G3157-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from 40 C to +85 C and from 40 C to +125 C

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance:

* 1.6  (typical) at VCC = 1.4 V

* 1.0  (typical) at VCC = 1.65 V

NX3L1G3157-Q100-NXP.pdf

Preview of NX3L1G3157-Q100 PDF

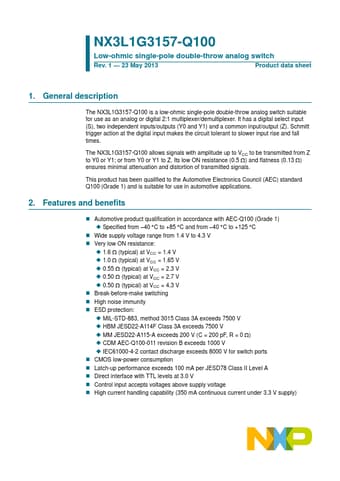

NX3L1G3157-Q100 Datasheet Preview Page 2 NX3L1G3157-Q100 Datasheet Preview Page 3
