NX3L1T5157 Low-ohmic single-pole double-throw switch

The NX3L1T5157 provides one low-ohmic single-pole double-throw analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. It has a digital select input (S) with Schmitt trigger action, two independent inputs/outputs (Y0, Y1) and a common input/output (Z). Schmitt trigger acti.

NX3L1T5157 Features

* I Wide supply voltage range from 1.4 V to 3.6 V I Very low ON resistance (peak): N 1.6 Ω (typical) at VCC = 1.4 V N 1.0 Ω (typical) at VCC = 1.65 V N 0.55 Ω (typical) at VCC = 2.3 V N 0.50 Ω (typical) at VCC = 2.7 V I Break-before-make switching I High noise immunity I ESD protection: N HBM JESD22-A

NX3L1T5157_NXPSemiconductors.pdf

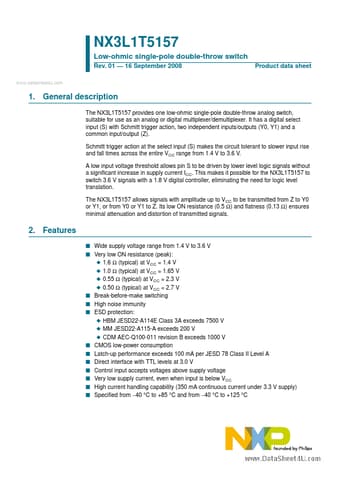

Preview of NX3L1T5157 PDF
