NX3L1G384

Low-ohmic single-pole single-throw analog switch

NX3L1G384 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak):

* 1.6  (typical) at VCC = 1.4 V

* 1.0  (typical) at VCC = 1.65 V

* 0.55  (typical) at VCC = 2.3 V

* 0.50  (typical) at VCC = 2.7 V

* 0.50  (typical) at VCC = 4.3 V

* High noise immun

NX3L1G384 General Description

The NX3L1G384 is a low-ohmic single-pole single-throw analog switch. It has two input/output terminals (Y and Z) and an active LOW enable input pin (E). When E is HIGH, the analog switch is turned off. Schmitt trigger action at the enable input (E) makes the circuit tolerant to slower input rise and.

NX3L1G384 Datasheet (322.52 KB)

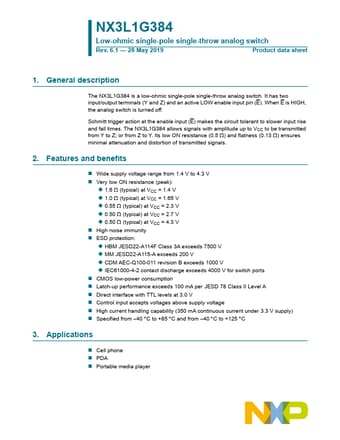

Preview of NX3L1G384 PDF

Datasheet Details

Part number:

NX3L1G384

Manufacturer:

NXP ↗

File Size:

322.52 KB

Description:

Low-ohmic single-pole single-throw analog switch.
