NX3L2T66

Dual low-ohmic single-pole single-throw analog switch

NX3L2T66 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak):

* 1.6 Ω (typical) at VCC = 1.4 V

* 1.0 Ω (typical) at VCC = 1.65 V

* 0.55 Ω (typical) at VCC = 2.3 V

* 0.50 Ω (typical) at VCC = 2.7 V

* 0.50 Ω (typical) at VCC =

NX3L2T66 General Description

NX3L2T66 is a dual low-ohmic single-pole single-throw analog switch. Each switch has two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When pin nE is LOW, the analog switch is turned off. Schmitt trigger action at the enable input (nE) makes the circuit tolerant to slower .

NX3L2T66 Datasheet (309.05 KB)

Preview of NX3L2T66 PDF

Datasheet Details

Part number:

NX3L2T66

Manufacturer:

NXP ↗ Semiconductors

File Size:

309.05 KB

Description:

Dual low-ohmic single-pole single-throw analog switch.

📁 Related Datasheet

NX3L2T384 - Dual low-ohmic single-pole single-throw analog switch (NXP)
NX3L2T384 Dual low-ohmic single-pole single-throw analog switch Rev. 5 — 8 February 2013 Product data sheet 1. General description The NX3L2T384 i.

NX3L2267 - Low-ohmic dual single-pole double-throw analog switch (NXP)
NX3L2267 Low-ohmic dual single-pole double-throw analog switch Rev. 5 — 18 June 2012 Product data sheet 1. General description The NX3L2267 is a d.

NX3L2267S - Low-ohmic dual single-pole double-throw analog switch (NXP)
NX3L2267S Low-ohmic dual single-pole double-throw analog switch Rev. 2 — 8 November 2011 Product data sheet 1. General description The NX3L2267S i.

NX3L2467 - Double-pole Double-throw Analog Switch (NXP)
NX3L2467 Dual low-ohmic double-pole double-throw analog switch Rev. 5.1 — 18 May 2021 Product data sheet 1 General description The NX3L2467 is a d.

NX3L2G384 - Dual low-ohmic single-pole single-throw analog switch (NXP Semiconductors)
NX3L2G384 Dual low-ohmic single-pole single-throw analog switch Rev. 01 — 18 September 2008 .. Product data sheet 1. General descri.

NX3L2G66 - Dual low-ohmic single-pole single-throw analog switch (NXP)
NX3L2G66 Dual low-ohmic single-pole single-throw analog switch Rev. 8 — 7 February 2013 Product data sheet 1. General description The NX3L2G66 is .

NX3L1G3157 - Low-ohmic single-pole double-throw analog switch (NXP Semiconductors)
NX3L1G3157 Low-ohmic single-pole double-throw analog switch Rev. 10 — 7 August 2012 Product data sheet 1. General description The NX3L1G3157 is a .

NX3L1G3157-Q100 - Low-ohmic single-pole double-throw analog switch (NXP)
NX3L1G3157-Q100 Low-ohmic single-pole double-throw analog switch Rev. 1 — 23 May 2013 Product data sheet 1. General description The NX3L1G3157-Q10.

TAGS

NX3L2T66 Dual low-ohmic single-pole single-throw analog switch NXP Semiconductors

Image Gallery

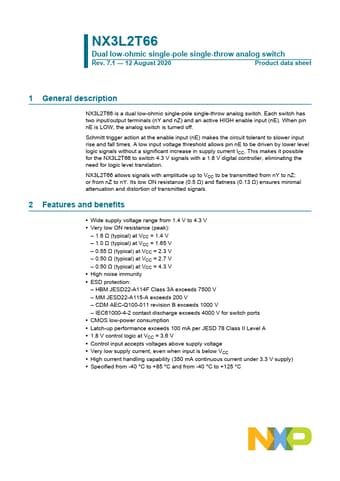

NX3L2T66 Datasheet Preview Page 2 NX3L2T66 Datasheet Preview Page 3
