NX3L2267 - Low-ohmic dual single-pole double-throw analog switch

NX3L2267 Description

NX3L2267 Low-ohmic dual single-pole double-throw analog switch Rev.5 * 18 June 2012 Product data sheet 1.General .
The NX3L2267 is a dual low-ohmic single-pole double-throw analog switch suitable for use as an analog or digital 2:1 multiplexer/demultiplexer.

NX3L2267 Features

* Wide supply voltage range from 1.4 V to 4.3 V
* Very low ON resistance (peak):
* 1.65  (typical) at VCC = 1.4 V
* 0.95  (typical) at VCC = 1.65 V
* 0.55  (typical) at VCC = 2.3 V
* 0.50  (typical) at VCC = 2.7 V
* 0.50  (typical) at VCC = 4.3 V
* Break-before-m

NX3L2267 Applications

* without significant increase in supply current ICC. This makes it possible for the NX3L2267 to switch 4.3 V signals with a 1.8 V digital controller, eliminating the need for logic level translation. The NX3L2267 allows signals with amplitude up to VCC to be transmitted from nZ to nY0 or nY1, or from

📥 Download Datasheet

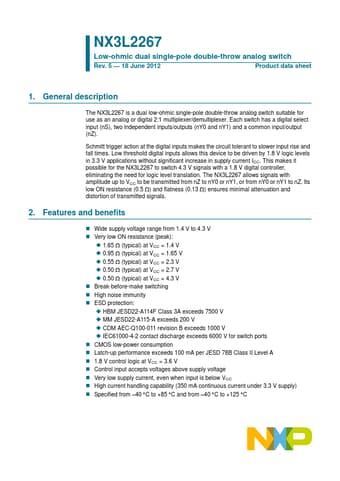

Preview of NX3L2267 PDF
