NX3L1G3157 - Low-ohmic single-pole double-throw analog switch

Product Overview

NXP Semiconductors

📥 Download Datasheet

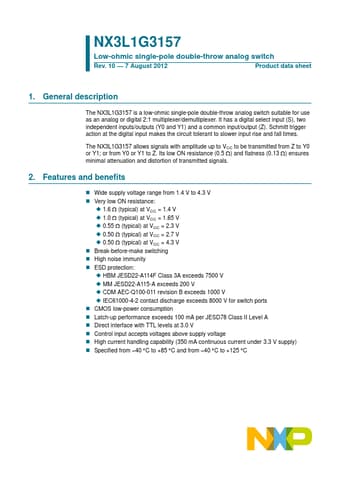

NX3L1G3157 Low-ohmic single-pole double-throw analog switch by NXP Semiconductors - Datasheet Preview — Datasheet preview – NX3L1G3157

Datasheet Details

Part number	NX3L1G3157
Manufacturer	NXP Semiconductors
File Size	252.14 KB
Description	Low-ohmic single-pole double-throw analog switch
Datasheet	NX3L1G3157 Datasheet
Additional preview pages of the NX3L1G3157 datasheet.

Product details

Description

The NX3L1G3157 is a low-ohmic single-pole double-throw analog switch suitable for use as an analog or digital 2:1 multiplexer/demultiplexer.

Features

Wide supply voltage range from 1.4 V to 4.3 V.
Very low ON resistance:.
1.6  (typical) at VCC = 1.4 V.
1.0  (typical) at VCC = 1.65 V.
0.55  (typical) at VCC = 2.3 V.
0.50  (typical) at VCC = 2.7 V.
0.50  (typical) at VCC = 4.3 V.
Break-before-make switching.
High noise immunity.
ESD protection:.
HBM JESD22-A114F Class 3A exceeds 7500 V.
MM JESD22-A115-A exceeds 200 V.
CDM AEC-Q100-011 revision B exceeds 1000 V.
IEC61000.
