NX3L1G66-Q100

Low-ohmic single-pole single-throw analog switch

NX3L1G66-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from 40 C to +85 C and from 40 C to +125 C

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak):

* 1.6  (typical) at VCC = 1.4 V

* 1.0  (typical) at VCC = 1

NX3L1G66-Q100 General Description

The NX3L1G66-Q100 is a low-ohmic single-pole single-throw analog switch. It has two input/output terminals (Y and Z) and an active HIGH enable input pin (E). When E is LOW, the analog switch is turned off. Schmitt trigger action at the enable input (E) makes the circuit tolerant to slower input rise.

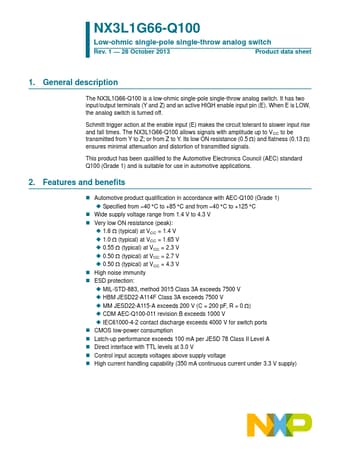

NX3L1G66-Q100 Datasheet (166.24 KB)

Preview of NX3L1G66-Q100 PDF

Datasheet Details

Part number:

NX3L1G66-Q100

Manufacturer:

NXP ↗

File Size:

166.24 KB

Description:

Low-ohmic single-pole single-throw analog switch.
