NX3008CBKS - N/P-channel MOSFET

NX3008CBKS Description

NX3008CBKS 30 / 30 V, 350 / 200 mA N/P-channel Trench MOSFET Rev.1 * 29 July 2011 Product data sheet 1.Product profile 1.1 General desc.
Complementary N/P-channel enhancement mode Field-Effect Transistor (FET) in very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package usi.

NX3008CBKS Features

* Low threshold voltage
* Very fast switching
* Trench MOSFET technology
* ESD protection up to 2 kV

NX3008CBKS Applications

* Level shifter
* Power supply converter
* Load switch
* Switching circuits 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit TR2 (P-channel) VDS drain-source voltage VGS gate-source voltage ID drain current TR1 (N-channel) T

📥 Download Datasheet

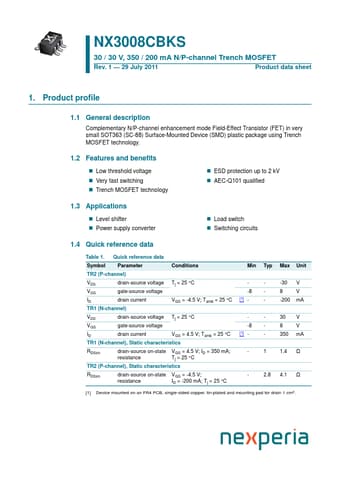

Preview of NX3008CBKS PDF
datasheet Preview Page 2 datasheet Preview Page 3
