NX3008CBKV, MOSFET

SO T6 NX3008CBKV 30 / 30 V, 400 / 220 mA N/P-channel Trench MOSFET Rev.1 * 29 July 2011 Product data sheet 1.Product profile 1.1 General d.
Complementary N/P-channel enhancement mode Field-Effect Transistor (FET) in an ultra small and flat lead SOT666 Surface-Mounted Device (SMD) plastic p.

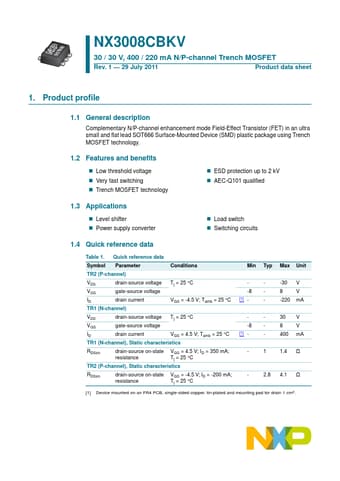

datasheet Preview Page 1 from Datasheet4u.com

NX3008CBKV-NXPSemiconductors.pdf

NX3008CBKV Datasheet Preview — Preview of NX3008CBKV PDF

Datasheet Details

Part number:

NX3008CBKV

Manufacturer:

NXP ↗ Semiconductors

File Size:

1.44 MB

Description:

MOSFET

Features

* Low threshold voltage
* Very fast switching
* Trench MOSFET technology
* ESD protection up to 2 kV

Applications

* Level shifter
* Power supply converter
* Load switch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID VDS VGS ID RDSon Quick reference data Parameter drain-source voltage gate-source voltage drain current drain-source voltage gate-source voltage drain curre
