NX3008PBK, 30V 230mA P-channel Trench MOSFET

SO T2 NX3008PBK 30 V, 230 mA P-channel Trench MOSFET Rev.1 * 1 August 2011 Product data sheet 1.Product profile 1.1 General .
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET.

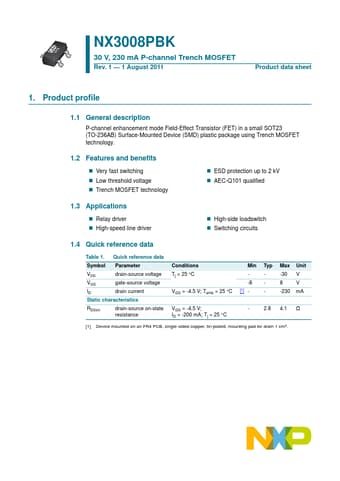

datasheet Preview Page 1 from Datasheet4u.com

NX3008PBK-NXPSemiconductors.pdf

NX3008PBK Datasheet Preview — Preview of NX3008PBK PDF

Datasheet Details

Part number:

NX3008PBK

Manufacturer:

NXP ↗ Semiconductors

File Size:

884.71 KB

Description:

30V 230mA P-channel Trench MOSFET

Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

Applications

* Relay driver
* High-speed line driver
* High-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID RDSon Quick reference data Parameter drain-source voltage gate-source voltage drain current drain-source on-state resistance VGS = -4.5 V; Tamb = 2
