NX3008NBKT, MOSFET

SO T4 16 NX3008NBKT 30 V, 350 mA N-channel Trench MOSFET Rev.1 * 1 August 2011 Product data sheet 1.Product profile 1.1 General descriptio.
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT416 (SC-75) Surface-Mounted Device (SMD) plastic package using Trench MOSFET te.

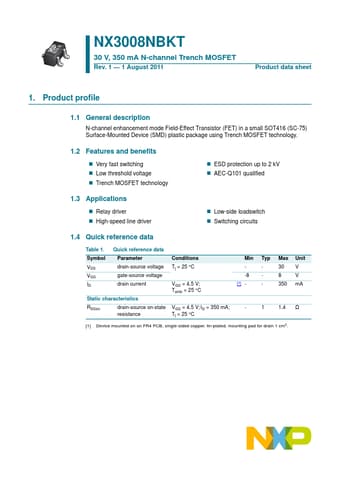

datasheet Preview Page 1 from Datasheet4u.com

NX3008NBKT-NXPSemiconductors.pdf

NX3008NBKT Datasheet Preview — Preview of NX3008NBKT PDF

Datasheet Details

Part number:

NX3008NBKT

Manufacturer:

NXP ↗ Semiconductors

File Size:

310.36 KB

Description:

MOSFET

Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID Quick reference data Parameter drain-source voltage gate-source voltage drain current VGS = 4.5 V; Tamb = 25 °C VGS = 4.5 V; ID = 350 mA; Tj = 25 °C
