NX3008PBKS - Dual P-channel MOSFET

NX3008PBKS Description

NX3008PBKS 30 V, 200 mA dual P-channel Trench MOSFET Rev.1 * 1 August 2011 Product data sheet 1.Product profile 1.1 General .
Dual P-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench.

NX3008PBKS Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

NX3008PBKS Applications

* Relay driver
* High-speed line driver
* High-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor VDS drain-source voltage VGS gate-source voltage ID drain current Static ch

📥 Download Datasheet

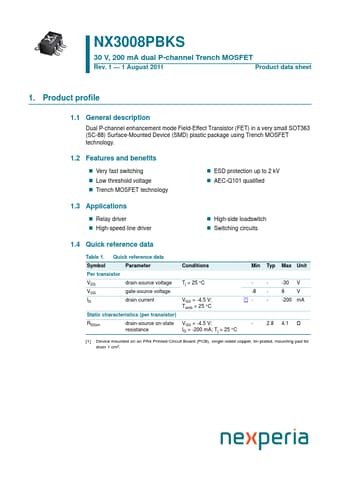

Preview of NX3008PBKS PDF
datasheet Preview Page 2 datasheet Preview Page 3
