NX3008NBKS 350mA dual N-channel Trench MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

NX3008NBKS 30 V, 350 mA dual N-channel Trench MOSFET Rev.1 * 1 August 2011 Product data sheet 1.Product profile 1.1 General .
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench.

📥 Download Datasheet

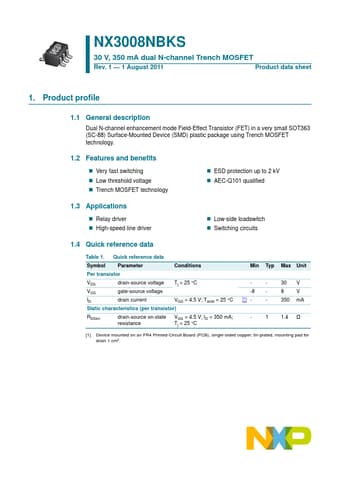

Preview of NX3008NBKS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID RDSon Quick reference data Parameter drain-source voltage gate-source voltage drain current drain-source on-state resistance VGS = 4.5 V; Tamb = 25
