NX3008PBKMB - P-channel MOSFET

NX3008PBKMB Description

NX3008PBKMB 30 V, single P-channel Trench MOSFET Rev.1 * 11 May 2012 Product data sheet 1.Product profile 1.1 General .
P-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package u.

NX3008PBKMB Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

NX3008PBKMB Applications

* Relay driver
* High-speed line driver
* High-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage VGS gate-source voltage ID drain current Static characteristics RDSon drain-source on-state res

📥 Download Datasheet

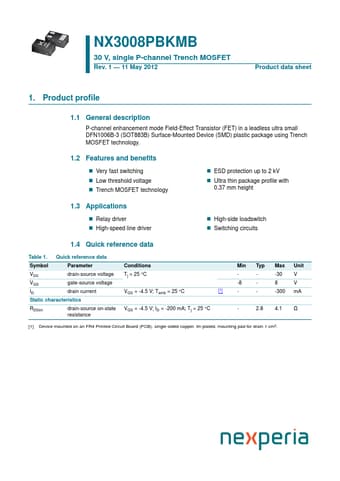

Preview of NX3008PBKMB PDF
datasheet Preview Page 2 datasheet Preview Page 3
