NX3008NBK - N-channel MOSFET

NX3008NBK Description

NX3008NBK 30 V, 400 mA N-channel Trench MOSFET 5 November 2022 Product data sheet 1.General .
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET.

NX3008NBK Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

NX3008NBK Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDS drain-source voltage Tj = 25 °C VGS gate-source voltage ID drain current VGS = 4.5 V;

📥 Download Datasheet

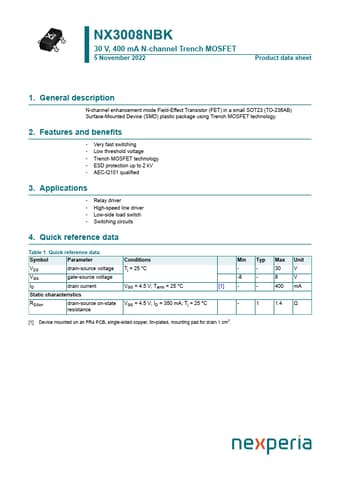

Preview of NX3008NBK PDF
datasheet Preview Page 2 datasheet Preview Page 3
