NX3L4051 Datasheet - NXP Semiconductors

Single low-ohmic 8-channel analog switch

NX3L4051 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak):

* 1.7  (typical) at VCC = 1.4 V

* 1.0  (typical) at VCC = 1.65 V

* 0.6  (typical) at VCC = 2.3 V

* 0.5  (typical) at VCC = 2.7 V 0.5  (typical) at VCC = 4.3 V

* Break-before-make switchi

NX3L4051 General Description

The NX3L4051 is a low-ohmic 8-channel analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. The NX3L4051 has three digital select inputs (S1 to S3), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). All eight switches share an enable input (E). A.

NX3L4051 Datasheet (261.11 KB)

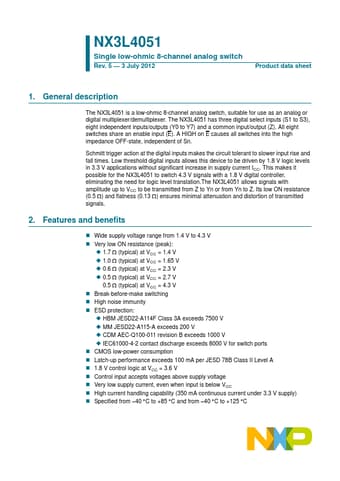

Preview of NX3L4051 PDF

Datasheet Details

Part number:

NX3L4051

Manufacturer:

NXP ↗ Semiconductors

File Size:

261.11 KB

Description:

Single low-ohmic 8-channel analog switch.
