NX3L4684

Low-ohmic Dual Single-pole Double-throw Analog Switch

NX3L4684 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak) for Y0 port:

* 0.8  (typical) at VCC = 1.4 V

* 0.5  (typical) at VCC = 1.65 V

* 0.3  (typical) at VCC = 2.3 V

* 0.25  (typical) at VCC = 2.7 V

* 0.25  (typical) at VCC = 4.3 V

* Break

NX3L4684 General Description

The NX3L4684 is a dual low-ohmic single-pole double-throw analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. Each switch has a digital select input (nS), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). Schmitt trigger action at the digital.

NX3L4684 Datasheet (270.57 KB)

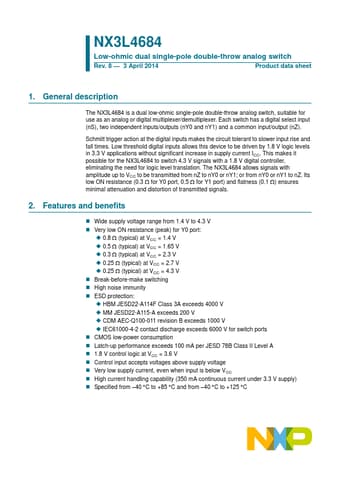

Preview of NX3L4684 PDF

Datasheet Details

Part number:

NX3L4684

Manufacturer:

NXP ↗

File Size:

270.57 KB

Description:

Low-ohmic dual single-pole double-throw analog switch.
