NX3L1T384 Datasheet - NXP

NX3L1T384 Single-pole Single-throw Analog Switch

The NX3L1T384 is a low-ohmic single-pole single-throw analog switch. It has two input/output terminals (Y and Z) and an active LOW enable input pin (E). When E is HIGH, the analog switch is turned off. Schmitt trigger action at the enable input (E) makes the circuit tolerant to slower input rise and.

NX3L1T384 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak):

* 1.6  (typical) at VCC = 1.4 V

* 1.0  (typical) at VCC = 1.65 V

* 0.55  (typical) at VCC = 2.3 V

* 0.50  (typical) at VCC = 2.7 V

* 0.50  (typical) at VCC = 4.3 V

* High noise immun

NX3L1T384_PhilipsSemiconductors.pdf

Preview of NX3L1T384 PDF

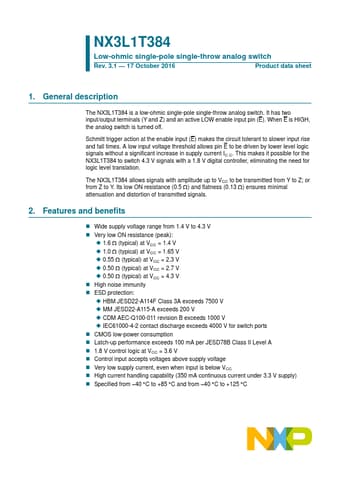

NX3L1T384 Datasheet Preview Page 2 NX3L1T384 Datasheet Preview Page 3

Datasheet Details

Part number:

NX3L1T384

Manufacturer:

NXP ↗

File Size:

231.54 KB

Description:

Single-pole single-throw analog switch.
