NX3L2467 Datasheet - NXP

NX3L2467 - Double-pole Double-throw Analog Switch

The NX3L2467 is a dual low-ohmic double-pole double-throw analog switch suitable for use as an analog or digital multiplexer/demultiplexer.

It consists of four switches, each with two independent input/outputs (nY0 and nY1) and a common input/output (nZ).

The two digital inputs (1S and 2S) are used

NX3L2467 Features

* Wide supply voltage range from 1.4 V to 4.3 V

* Very low ON resistance (peak):

* 1.7 Ω (typical) at VCC = 1.4 V

* 1.0 Ω (typical) at VCC = 1.65 V

* 0.6 Ω (typical) at VCC = 2.3 V

* 0.5 Ω (typical) at VCC = 2.7 V

* 0.5 Ω (typical) at VCC = 4.3

NX3L2467_PhilipsSemiconductors.pdf

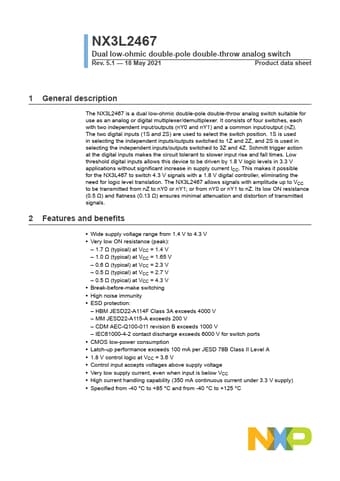

Preview of NX3L2467 PDF
