AFT05MS003N Datasheet - NXP

AFT05MS003N RF Power LDMOS Transistor

Freescale Semiconductor Technical Data RF Power LDMOS Transistor High Ruggedness N Channel Enhancement Mode Lateral MOSFET Designed for handheld two way radio applications with frequencies from 1.8 to 941 MHz. The high gain, ruggedness and wideband performance of this device make it ideal for large signal, common source amplifier applications in handheld radio equipment. Wideband Performance (7.5 Vdc, TA = 25C, CW) Frequency Pin Gps D Pout (MHz).

AFT05MS003N Features

* Characterized for Operation from 1.8 to 941 MHz

* Unmatched Input and Output Allowing Wide Frequency Range Utilization

* Integrated ESD Protection

* Integrated Stability Enhancements

* Wideband

* Full Power Across the Band

* Exceptional Thermal Performance

* Ext

AFT05MS003N Datasheet (1.19 MB)

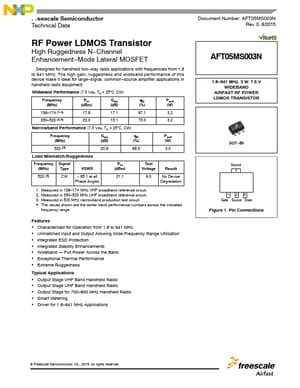

Preview of AFT05MS003N PDF
AFT05MS003N Datasheet Preview Page 2 AFT05MS003N Datasheet Preview Page 3

Datasheet Details

Part number:

AFT05MS003N

Manufacturer:

NXP ↗

File Size:

1.19 MB

Description:

Rf power ldmos transistor.
