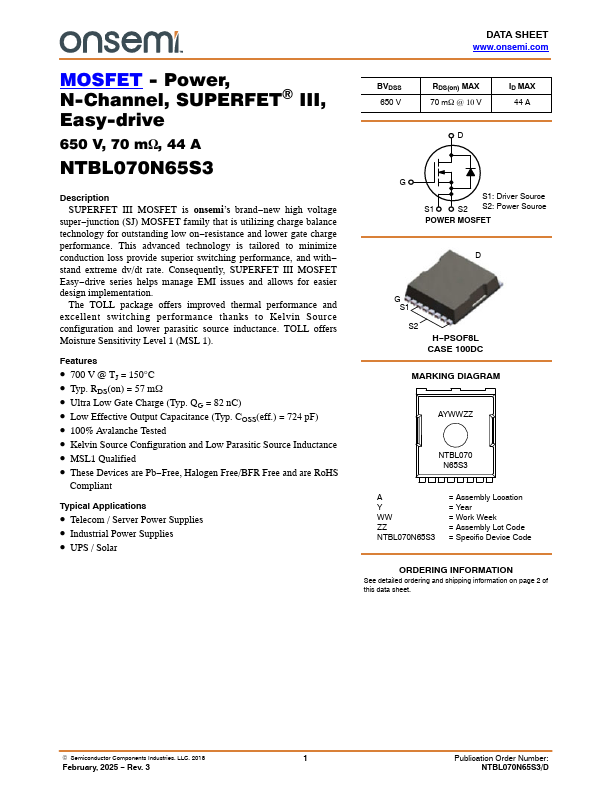

NTBL070N65S3 - N-Channel MOSFET

ON Semiconductor

NTBL070N65S3 Datasheet Preview — Preview of NTBL070N65S3 PDF

Datasheet Details

Part number	NTBL070N65S3
Manufacturer	ON Semiconductor ↗
File Size	476.48 KB
Description	N-Channel MOSFET
Datasheet	NTBL070N65S3-ONSemiconductor.pdf

NTBL070N65S3 Product details

Description

SUPERFET III MOSFET is onsemi’s brand new high voltage super junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on resistance and lower gate charge performance. stand extreme dv/dt rate. drive series helps manage EMI issues and allows for easier design implementati

Features

700 V @ TJ = 150°C.
Typ. RDS(on) = 57 mW.
Ultra Low Gate Charge (Typ. QG = 82 nC).
Low Effective Output Capacitance (Typ. COSS(eff. ) = 724 pF).
100% Avalanche Tested.
Kelvin Source Configuration and Low Parasitic Source Inductance.
MSL1 Qualified.
These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant Typical.
