PCFF30H120SWF, Power Diode

Diode * Power, Bare Die Gen VII, Fast Recovery 1200 V, 30 A PCFF30H120SWF .

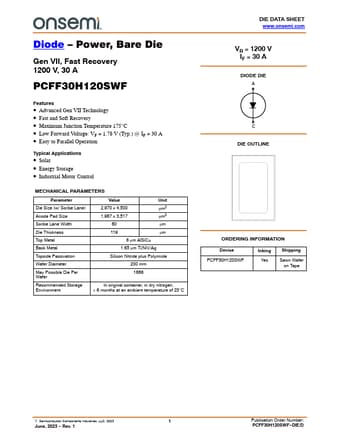

datasheet Preview Page 1 from Datasheet4u.com

PCFF30H120SWF-ONSemiconductor.pdf

PCFF30H120SWF Datasheet Preview — Preview of PCFF30H120SWF PDF

Datasheet Details

Part number:

PCFF30H120SWF

Manufacturer:

ON Semiconductor ↗

File Size:

98.85 KB

Description:

Power Diode

Features

* Advanced Gen VII Technology
* Fast and Soft Recovery
* Maximum Junction Temperature 175°C
* Low Forward Voltage: VF = 1.78 V (Typ. ) @ IF = 30 A

Applications

* Solar
* Energy Storage
* Industrial Motor Control MECHANICAL PARAMETERS Parameter Die Size (w/ Scribe Lane) Anode Pad Size Scribe Lane Width Die Thickness Top Metal Value Unit 2,970 x 4,500 mm2 1,987 x 3,517 mm2 80 mm 119 mm 6 mm AlSiCu Back Metal Topside Pass
