PCFF55H120SWF, Power DIODE

Diode * Power, Bare Die Gen VII, Fast Recovery 1200 V, 55 A PCFF55H120SWF .

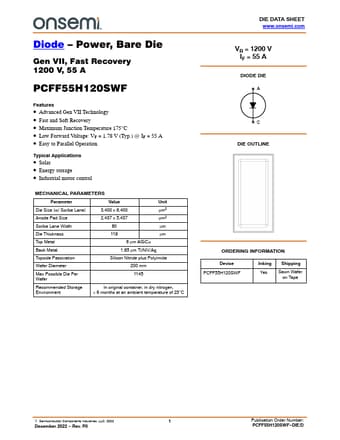

datasheet Preview Page 1 from Datasheet4u.com

PCFF55H120SWF-ONSemiconductor.pdf

PCFF55H120SWF Datasheet Preview — Preview of PCFF55H120SWF PDF

Datasheet Details

Part number:

PCFF55H120SWF

Manufacturer:

ON Semiconductor ↗

File Size:

101.43 KB

Description:

Power DIODE

Features

* Advanced Gen VII Technology
* Fast and Soft Recovery
* Maximum Junction Temperature 175°C
* Low Forward Voltage: VF = 1.78 V (Typ. ) @ IF = 55 A

Applications

* Solar
* Energy storage
* Industrial motor control MECHANICAL PARAMETERS Parameter Die Size (w/ Scribe Lane) Anode Pad Size Scribe Lane Width Die Thickness Top Metal Back Metal Topside Passivation Value Unit 3,400 x 6,400 mm2 2,437 x 5,437 mm2 80 mm 119 mm 6 mm
